Modern Windows Retain 1920s Aesthetic for this Cotswold Tudor-style School

December 02, 2021 - by commARCH
Send this article to a friend
Modern Windows Retain 1920s Aesthetic for this Cotswold Tudor-style School

Winco Window Company, courtesy Linetec

Where did it happen?

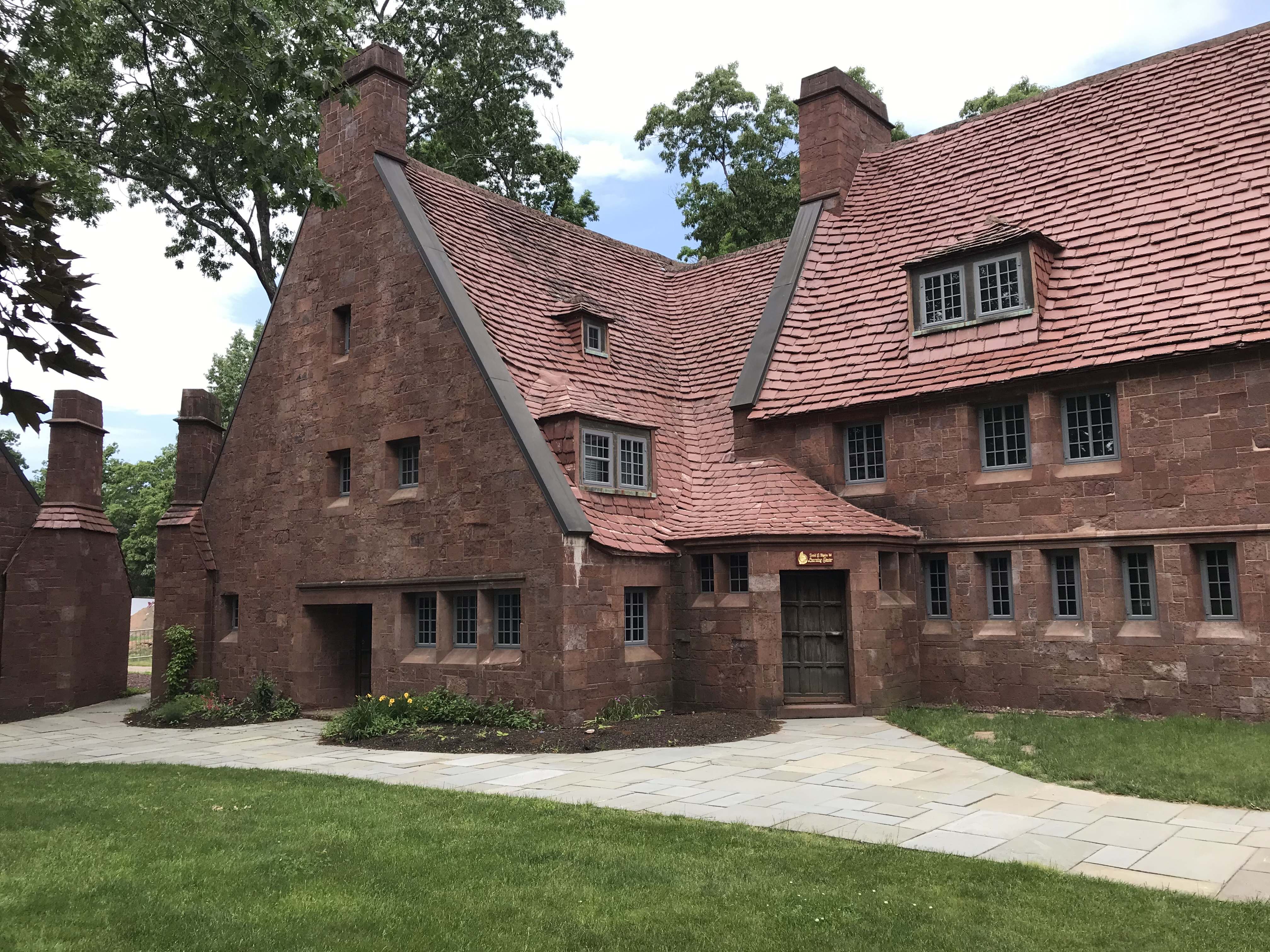

Avon Old Farms School, Avon, Connecticut. Opened in 1927, the Avon Old Farms boarding school for boys was founded and designed by one of the first licensed female architects in American history, Theodate Pop Riddle. The private school’s Cotswold Tudor architectural style follows the form of medieval village structures in England’s rural southwestern region of the same name. Sometimes referred to as “storybook style,” notable features include steep roofs, prominent chimneys, and side-hinged, project-out, divided lite windows.

Who was involved?
The 100-year-old windows were replaced with new aluminum-framed units manufactured by Winco Window Company and finished by Linetec in a “Steel Wool” color to match the historical aesthetic while delivering modern performance. Also involved were glass fabricator Vitro Architectural Glass and Stanley Wiesen, Inc. Glass & Metal.

What was the challenge?
To support the school’s sustainability goals and create a comfortable learning center for its 400-plus students in grades 9-12.

Winco Window Company, courtesy Linetec

What was the solution?

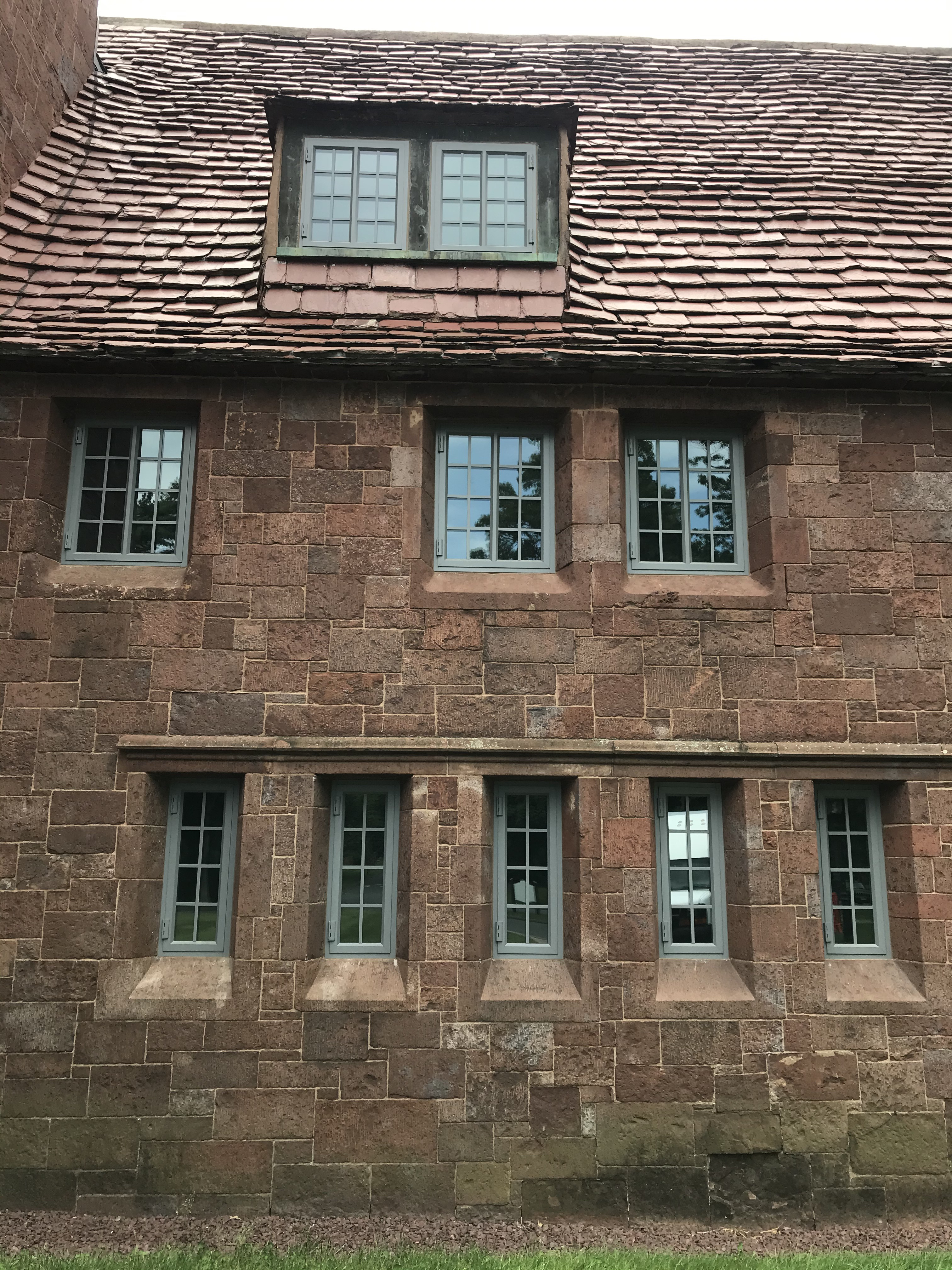

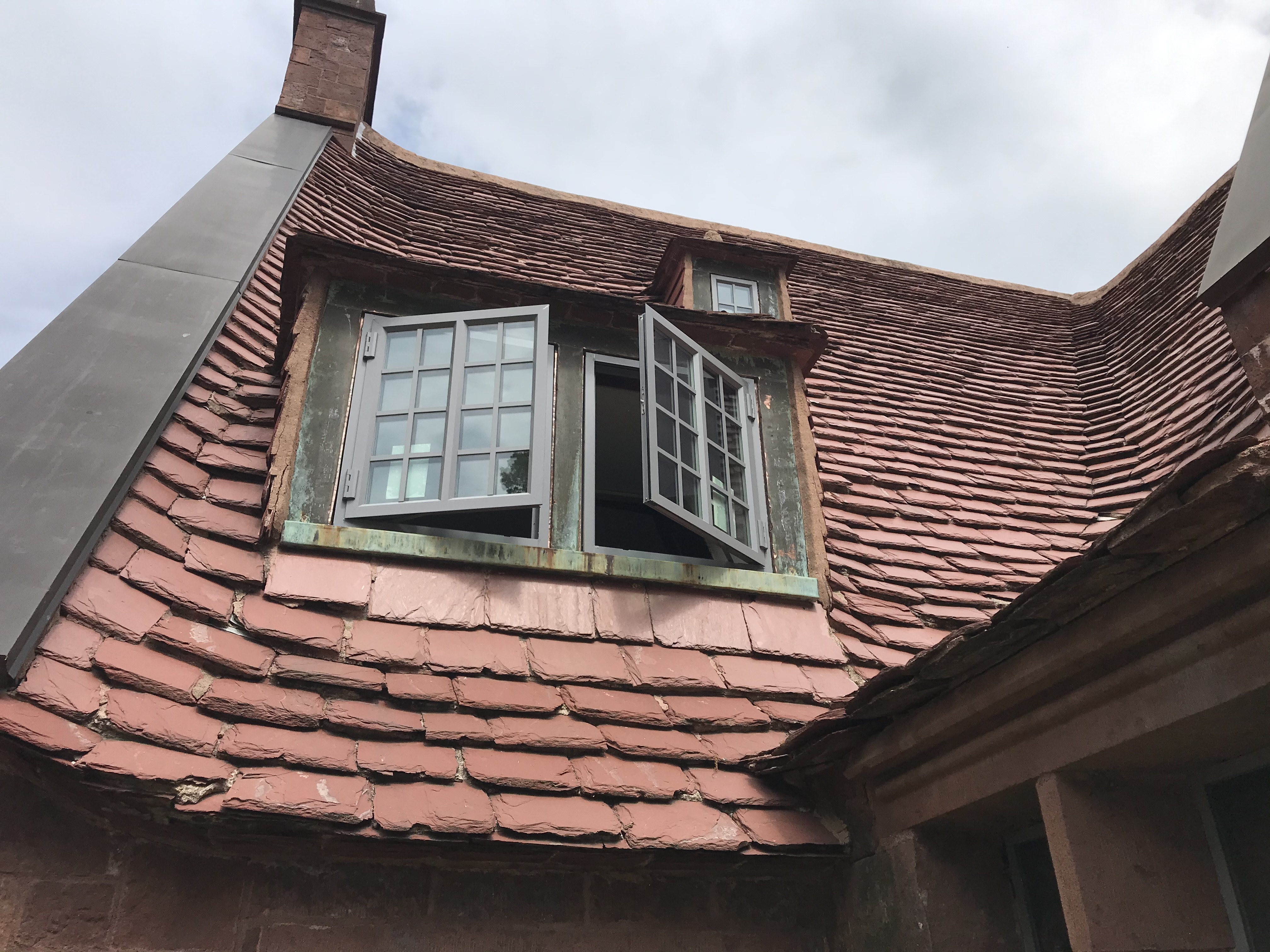

Replicating the original windows’ appearance was simplified with Winco Series 1150S 2-inch fixed and casement units in multiple configurations. These windows have an integral beveled glazing stop and applied muntin grid to simulate the historic look of true divided lites without compromising on performance. All of the Winco Window’s aluminum frames, grids, and trim were finished by Linetec in the Steel Wool gray color using a 70% PVDF resin-based architectural coating. Using aluminum extrusions from Winco, Stanley Wiesen, Inc. Glass & Metal custom-fabricated some of the school’s small, fixed, upper-story windows.

Winco Window Company, courtesy Linetec

The window retrofit was planned and executed over four years during school breaks starting in 2018 and concluding in 2022. Stanley Wiesen, Inc. Glass & Metal removed and replaced dozens of windows each year. The first phase included 186 units at the Diogenes Dormitory and headmaster’s house. The second phase involved 205 windows at Pelican Dormitory and the first part of Eagle Dormitory. The third phase finished Eagle Dormitory and the Administrative building’s 224 windows. The final phase will include 241 units at the Elephant Dormitory.

What were the results?
The windows’ high performance and durable finishes help minimize maintenance and repairs throughout their long lifespan. At the end of their useful life on the buildings, the aluminum can be recycled and reused, further exemplifying the school’s sustainability initiatives.

Supporting the school’s goals, high-performance Vitro Solarban 60 glass also helps keep out the New England damp, cold weather in the winter and manages unwanted solar heat gain during the summer. In the warm months, many of the windows can be opened for natural ventilation. The combination of operable units and high thermal performance reduces the demands on the school buildings’ HVAC loads, which lowers energy usage, natural resource consumption, and associated carbon emissions.

What product(s) were involved?
The windows look onto 900 acres of land in rural north-central Connecticut. The original school buildings at Avon Old Farms were constructed from locally sourced materials from the surrounding forests and quarries of the area. Respecting its natural environment, the school’s sustainability initiatives include pollinator-friendly landscaping, water-efficient systems, and energy-conserving and energy-producing efforts to reduce its carbon footprint.

As an environmentally responsible finisher, Linetec also applied the windows’ high-performance painted coatings under quality-controlled factory conditions to safely capture and destroy the VOCs present in liquid solvent-based paints before the finished products’ arrival at the job site. These finishes meet the stringent AAMA 2605 industry standard, which is verified to exhibit outstanding resistance to humidity, color change, chalk, gloss loss, and chemicals, and carry a 10-year warranty.

Winco Window Company, courtesy Linetec
