The Tustin Legacy Magnet Academy Case Study

July 14, 2021 - by commARCH
Send this article to a friend
The Tustin Legacy Magnet Academy Case Study

Tustin, CA.

Who was involved?
Architect: PJHM Architects
Client: Tustin Unified School District
Solatube Distributor/Installer: Steam Plant, Ltd.

Image Credits: Solatube


What was the challenge?
Flanked by two iconic structures, the U.S. Navy and Marine Corps Air Station (M.C.A.S.) North and South blimp hangars, the design team was faced with the challenge of creating a campus that would fit in with its historic neighbors, accommodate advancements in education and technology, and create a learning environment that would optimize focus, space and creativity.

The topic of budget was consistently at the discussion table, too. According to the U.S. Department of Education, U.S. schools spend approximately $8 billion a year on utilities, with 26% of that energy consumption dedicated to lighting. This exorbitant amount of energy cost is more than schools spend on textbooks and computers combined. In order to prioritize student development, the design team decided that both energy and water management for the campus needed to be at the forefront of the design.

What was the solution?
To properly daylight the campus and meet design goals, the Tustin Legacy Magnet Academy utilized the Solatube Brighten Up Series 290 DS units.

Image Credits: Solatube

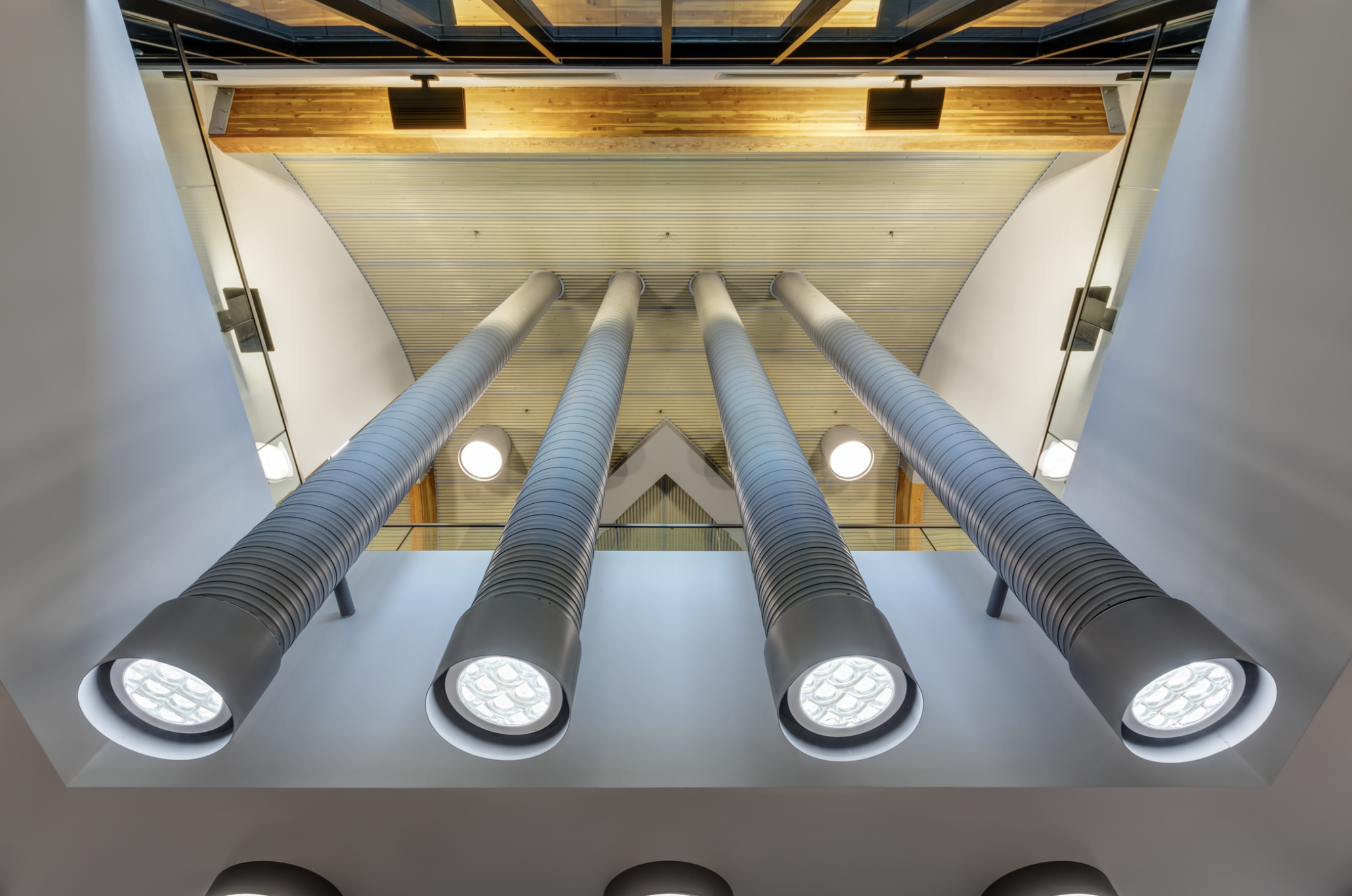

Solatube International worked closely with the design team to create a striking and high-performing solution which entailed placing the 30 foot long vertical Solatube tubes inside corrugated metal tubes to create a one-of-a-kind effect where the broad spectrum daylight would perfectly illuminate the space below. The beautiful long tubes not only enhance the building design but feature minimal light loss due to Solatube’s advanced optics and superior Spectralight Infinity tubing material. Additionally, Solatube Daylight Dimmers were also fitted to each Solatube system allowing teachers and staff to adjust room daylight levels simply and easily.

The exterior design took great inspiration from the iconic M.C.A.S. hangar bay doors next door. These designs include the use of all wood-framed construction, parabolic-shaped roofs, outdoor trellis, and curtain walls.

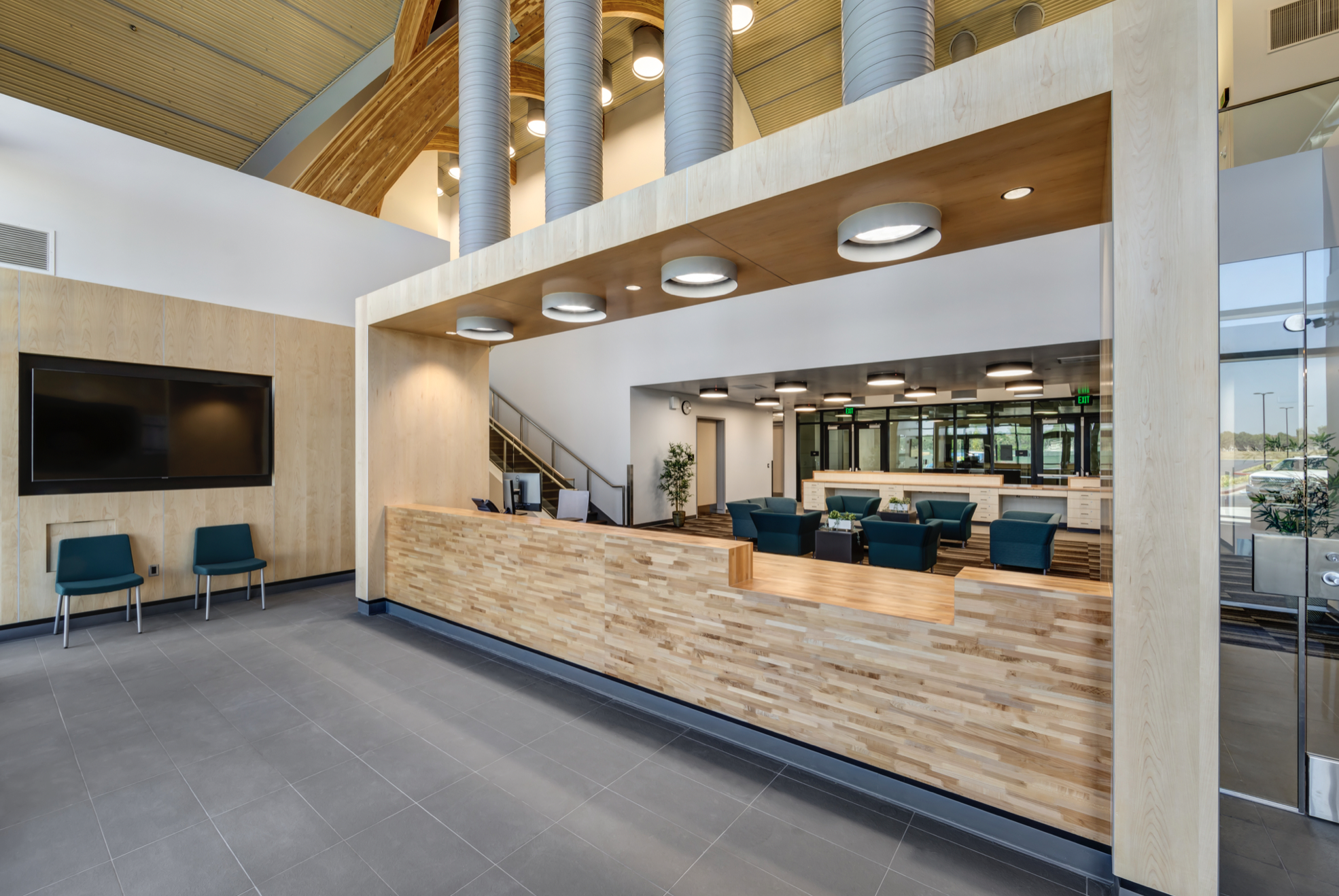

Solatube tubular skylights provided an exceptionally good solution to daylighting the large open areas within the building. We decided
to celebrate the daylighting pathway and its capability as a feature that greets you at the building entries.” - Thomas W. Kruse, Architect of Record.

Image Credits: Solatube


What were the results?
This dynamic design resulted in an extraordinary space, delivering distinct personality to the Tustin Legacy Magnet Academy. The concept of energy savings and sustainability are demonstrated to the students throughout the campus - not just in the textbooks - and both students and teachers alike will reap the many benefits provided by natural light.

What products were involved?
8 Solatube Brighten Up Series 290 DS units.

About Solatube International Inc.
Solatube International, Inc. is the worldwide leader and manufacturer of tubular daylighting devices. In business since 1991, the company designs and manufactures a full line of daylighting systems and solar-powered attic fans in various sizes and configurations. It distributes its products throughout the United States of America and Canada using a network of dealers and distributors.
